8-layer PCB with Red Solder Mask
As a company focusing on the sales of electronic components and related 8-layer PCB with Red Solder Mask, Hoshineo Lcd-Tech has a technical team with professional knowledge and rich experience, including circuit design, software development, quality testing, etc., so as to ensure the stability and reliability of products, and win the favor of domestic and foreign customers.
Send Inquiry
Product Description

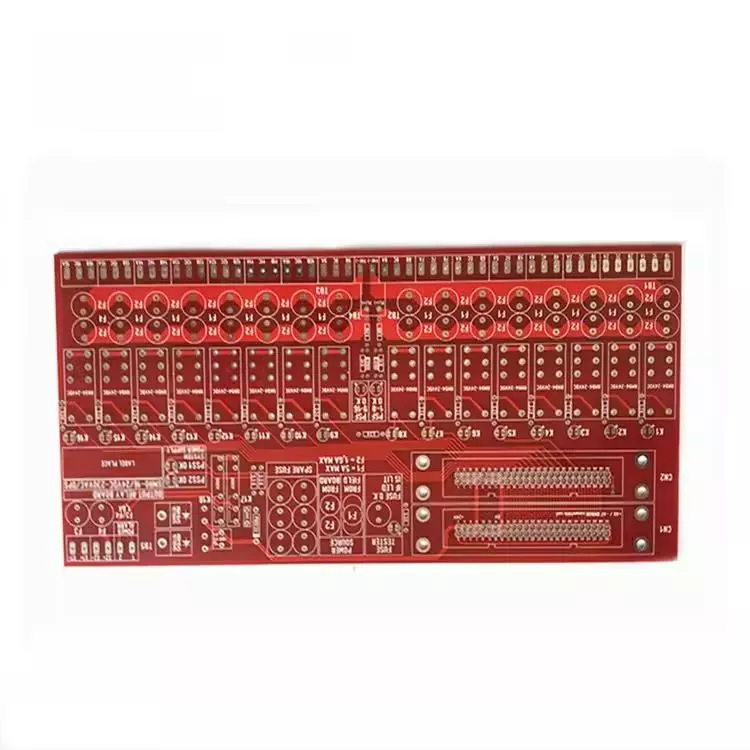

The 8-layer PCB with Red Solder Mask (eight-layer printed circuit board) provided by Hoshineo Lcd-Tech is a circuit board with eight layers of conductive layers and insulating materials stacked. Red Solder Mask refers to a red solder mask covered on the top or bottom of these layers to protect the copper foil line from oxidation, prevent solder from incorrectly sticking to non-welded areas, and provide moisture protection, insulation, and aesthetics.
Hoshineo Lcd-Tech 8-layer PCB with Red Solder Mask Feature :
Multi-layer structure: 8-layer PCB has a complex layered structure, including a plurality of signal layers, power layers and strata, and each layer is connected through a hole to achieve signal and power transmission.
Red solder stop layer: The use of red solder stop material on the top or bottom layer of the PCB increases the visibility and recognition of the board, while providing additional protection.
High complexity: Due to the number of layers, the design complexity is correspondingly increased, which can support more signal paths and more complex circuit designs.
High reliability: The combination of multi-layer structure and red solder resistance layer improves the reliability and durability of the circuit board, reducing the failure caused by oxidation, short circuit and other problems.
Hoshineo Lcd-Tech 8-layer PCB with Red Solder Mask Application
Signal transmission: Through the signal layer in the multi-layer structure, high-speed and stable signal transmission between electronic components is realized.
Power distribution: The power layer is used to provide a stable power supply to the circuit to ensure the normal operation of the circuit.
Ground protection: The strata are used to provide ground protection, stabilize signals and prevent interference.
Copper foil protection: The red solder shield is covered above the copper foil line to prevent oxidation of the copper foil in contact with the air, and to prevent solder from mistakenly sticking to non-welded areas.
Hoshineo Lcd-Tech 8-layer PCB with Red Solder Mask Details
Packaging & shipping
|
Packaging |
Plastic bag +foam+cartom |
|
Carton Size |
41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
|
Gross weight |
15.0 -20KGS |
|
MOQ |
1 PCS for Cheap custom lcd screen with TN display mode |
|
Specitional packaging |
negotiate |
